MASTERMOUNT400 – Mount and Adapter for Bosch KIOX 400C

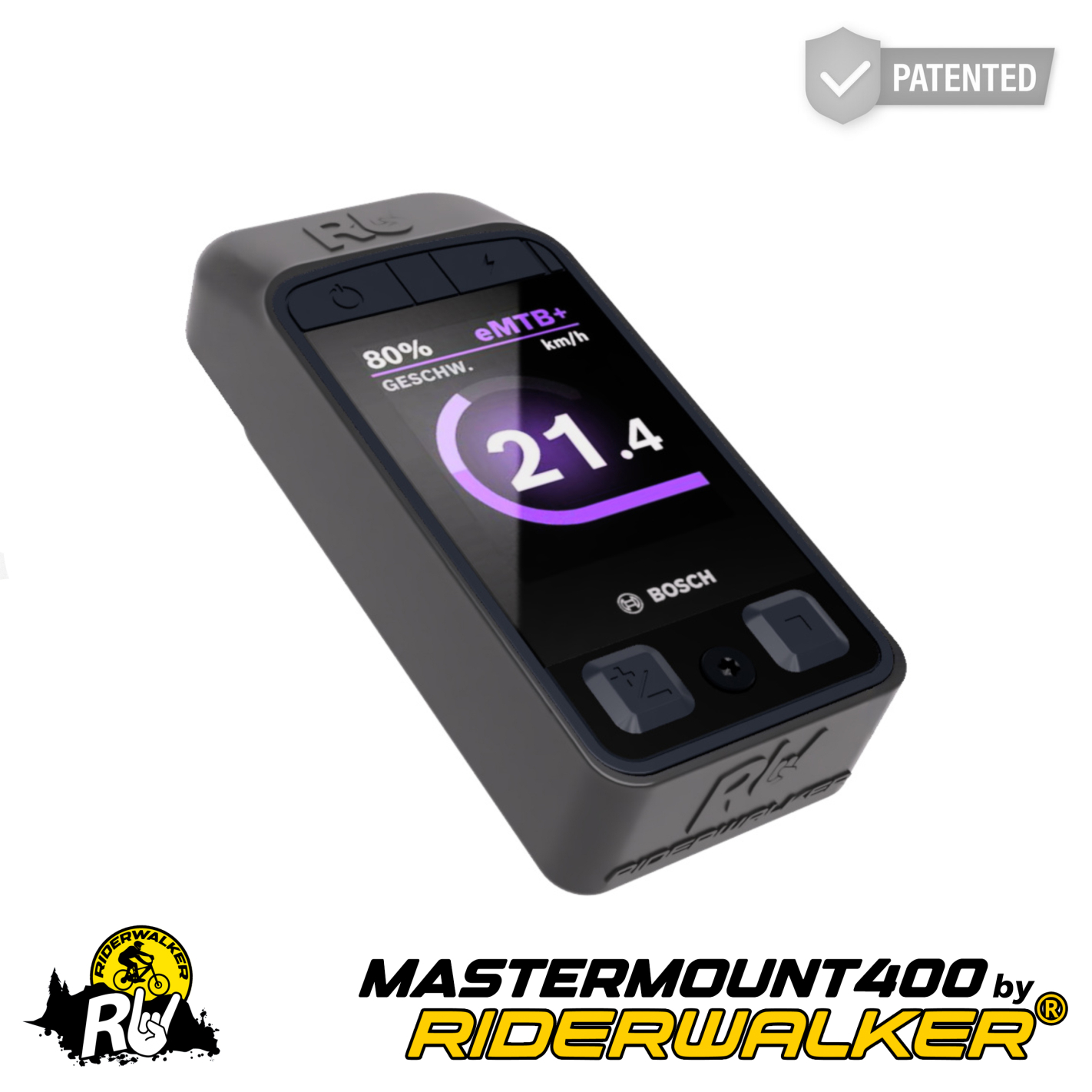

MASTERMOUNT400
Available stock - FREE SHIPPING!
€38.00
VAT included

Rating:
(9)
Write your review

Description

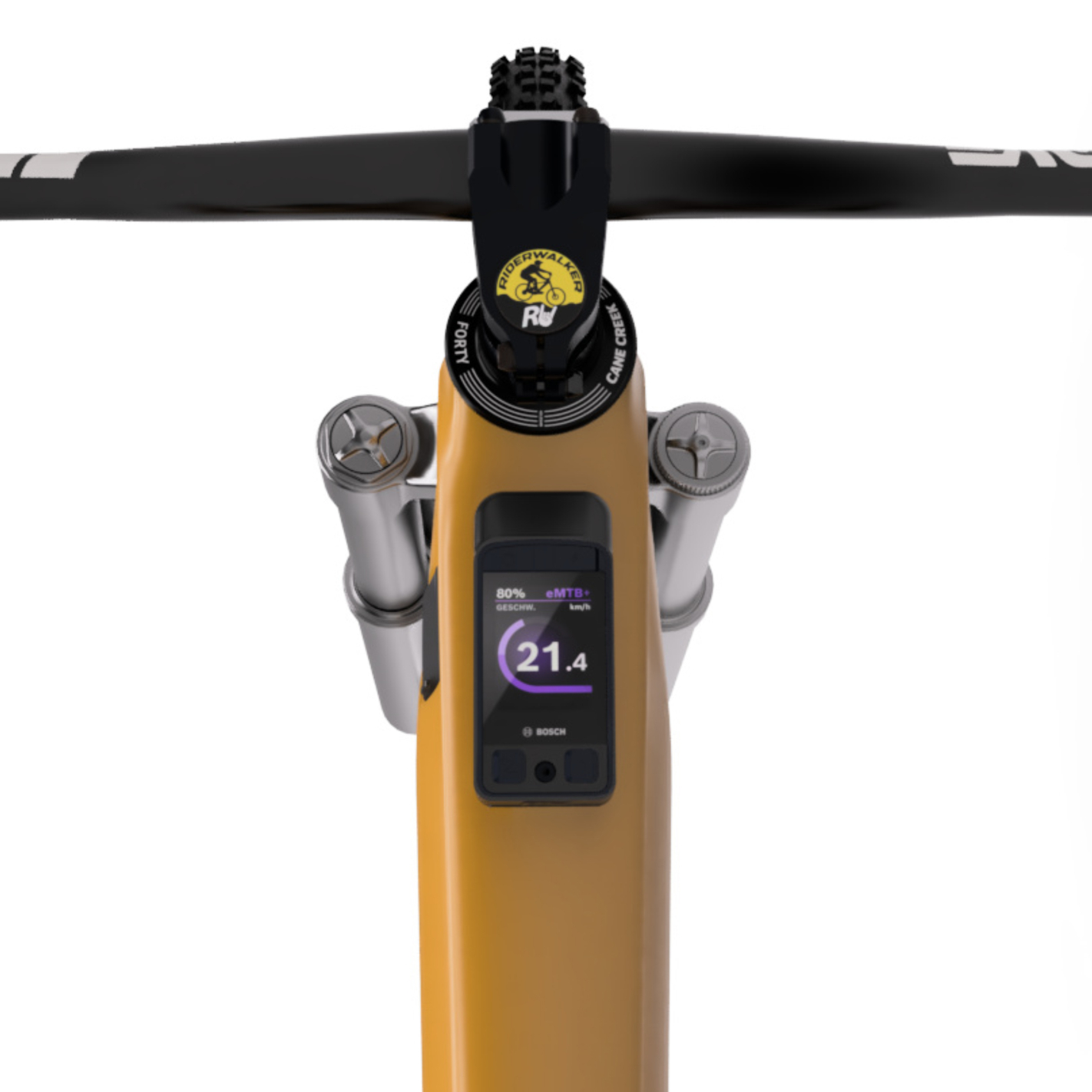

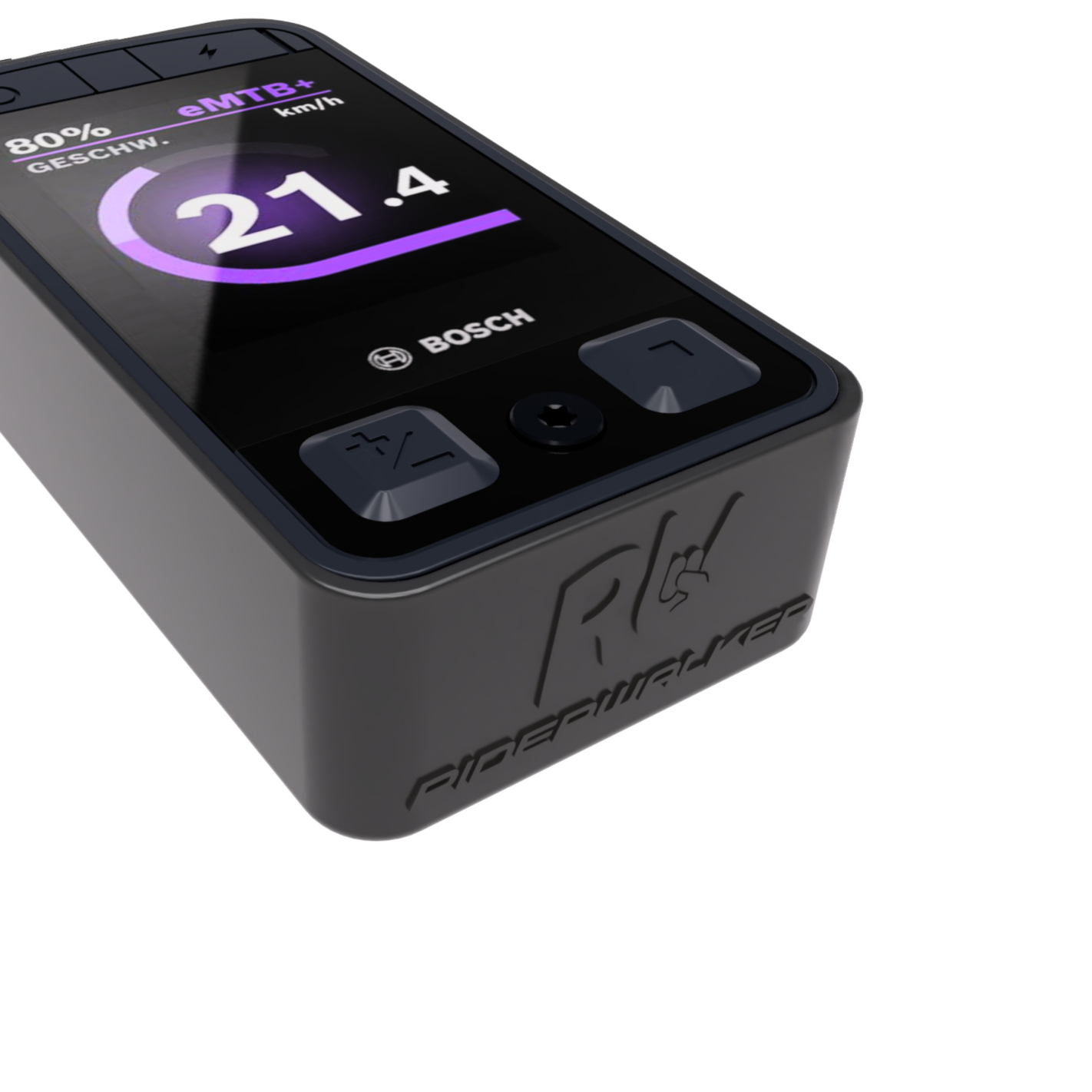

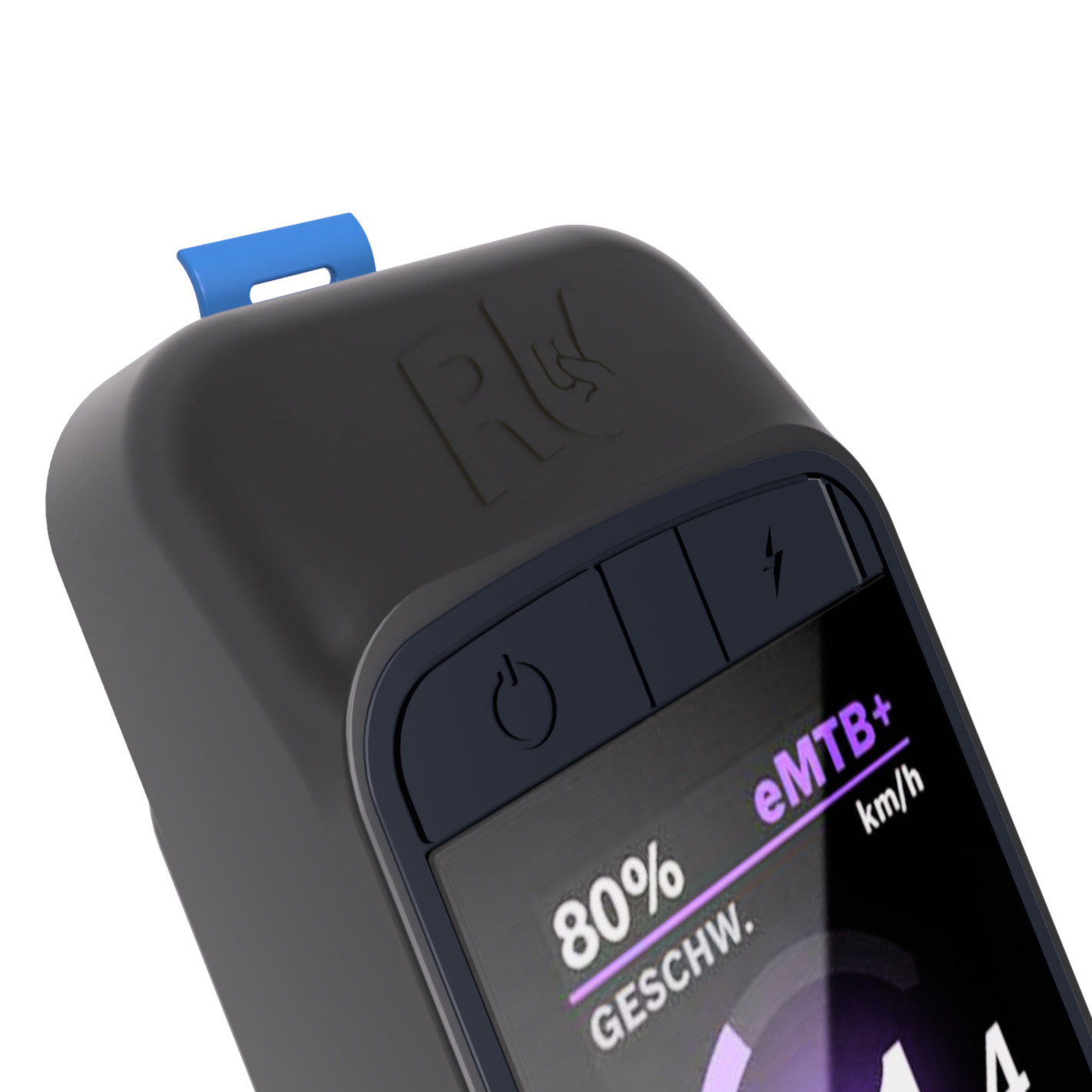

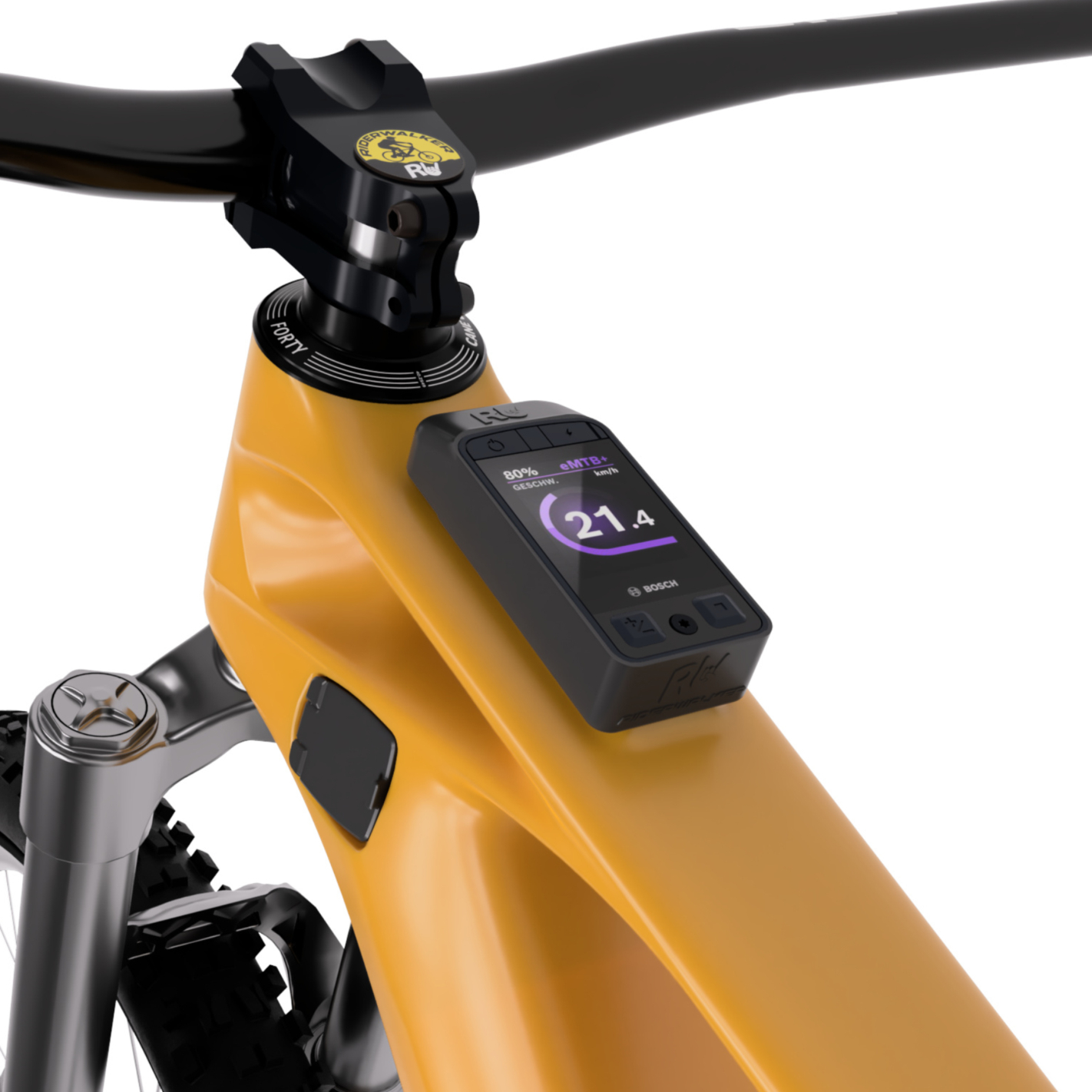

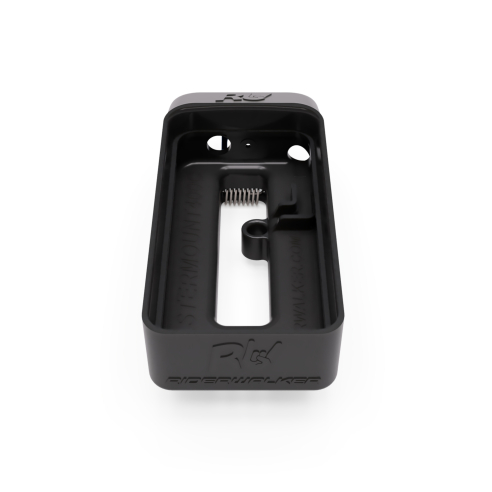

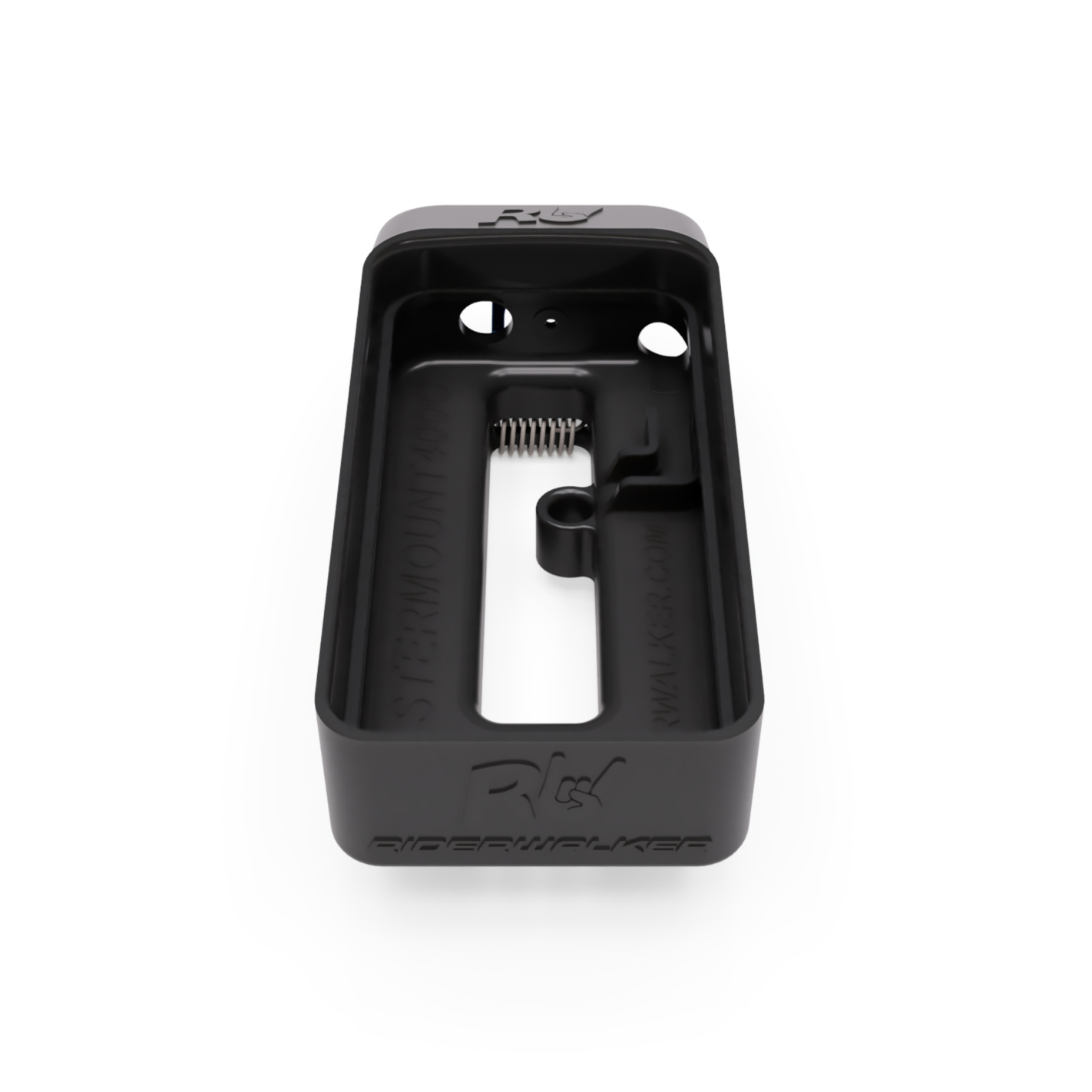

MASTERMOUNT400 is the adapter mount for the BOSCH KIOX 400C that allows you to install the display on e-bike frames that do not have an opening large enough to accommodate it.

It is compatible with any bike model and brand equipped with a BOSCH motor and the “BOSCH System Controller” unit installed on the top tube.

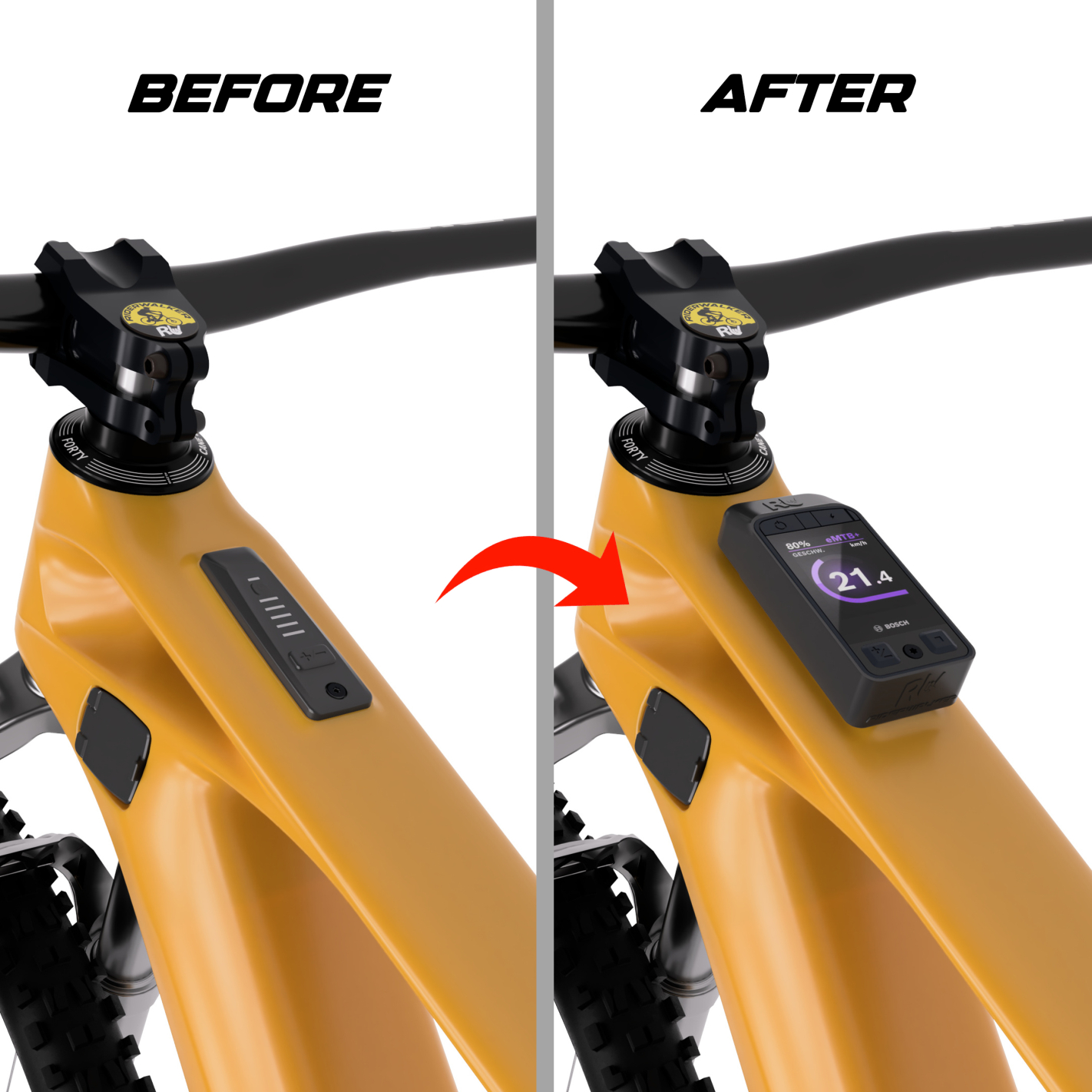

It is very easy to install. It attaches to your bike’s frame in the same place where the power button (System Controller) is located, allowing the frame to be adapted to install the BOSCH KIOX 400C display.

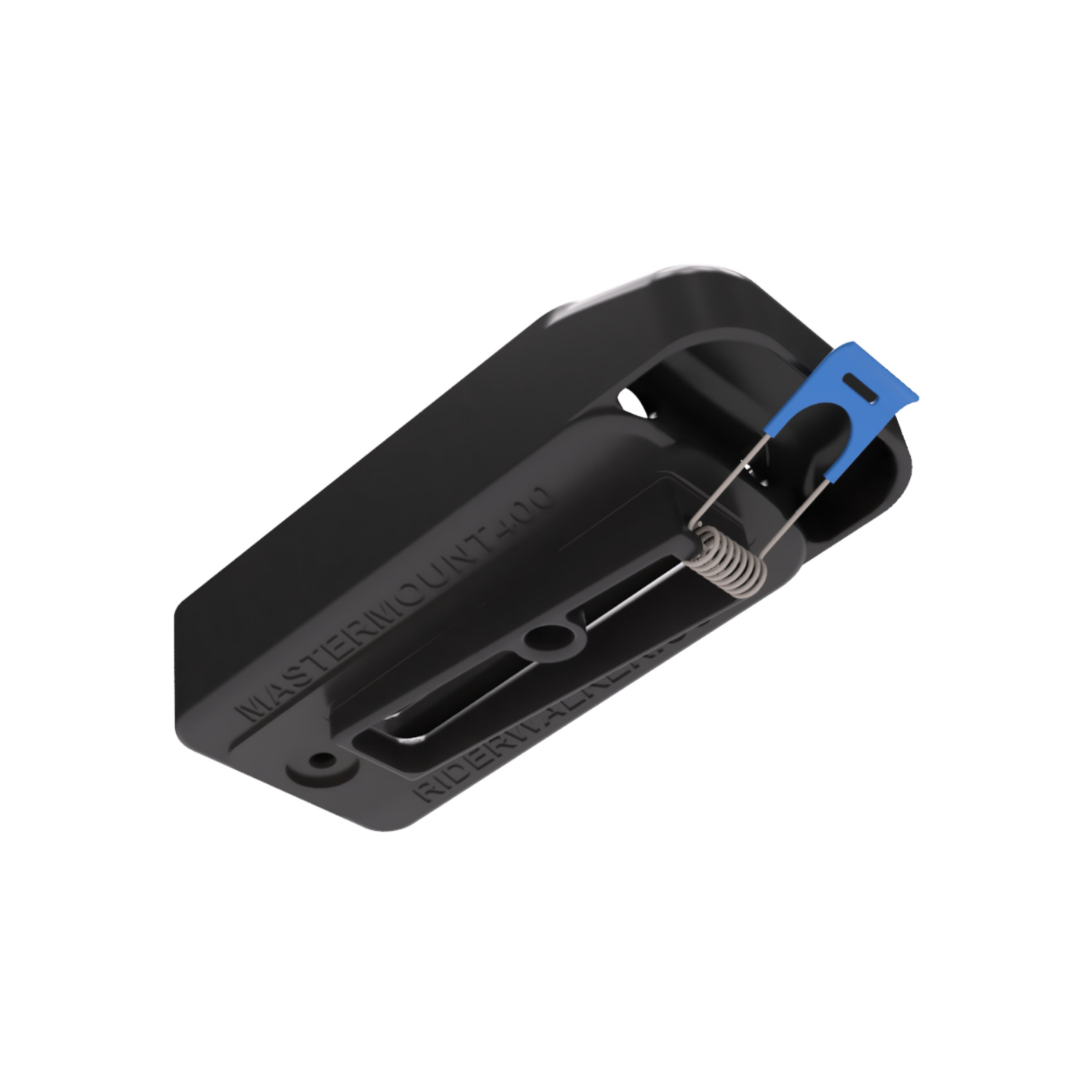

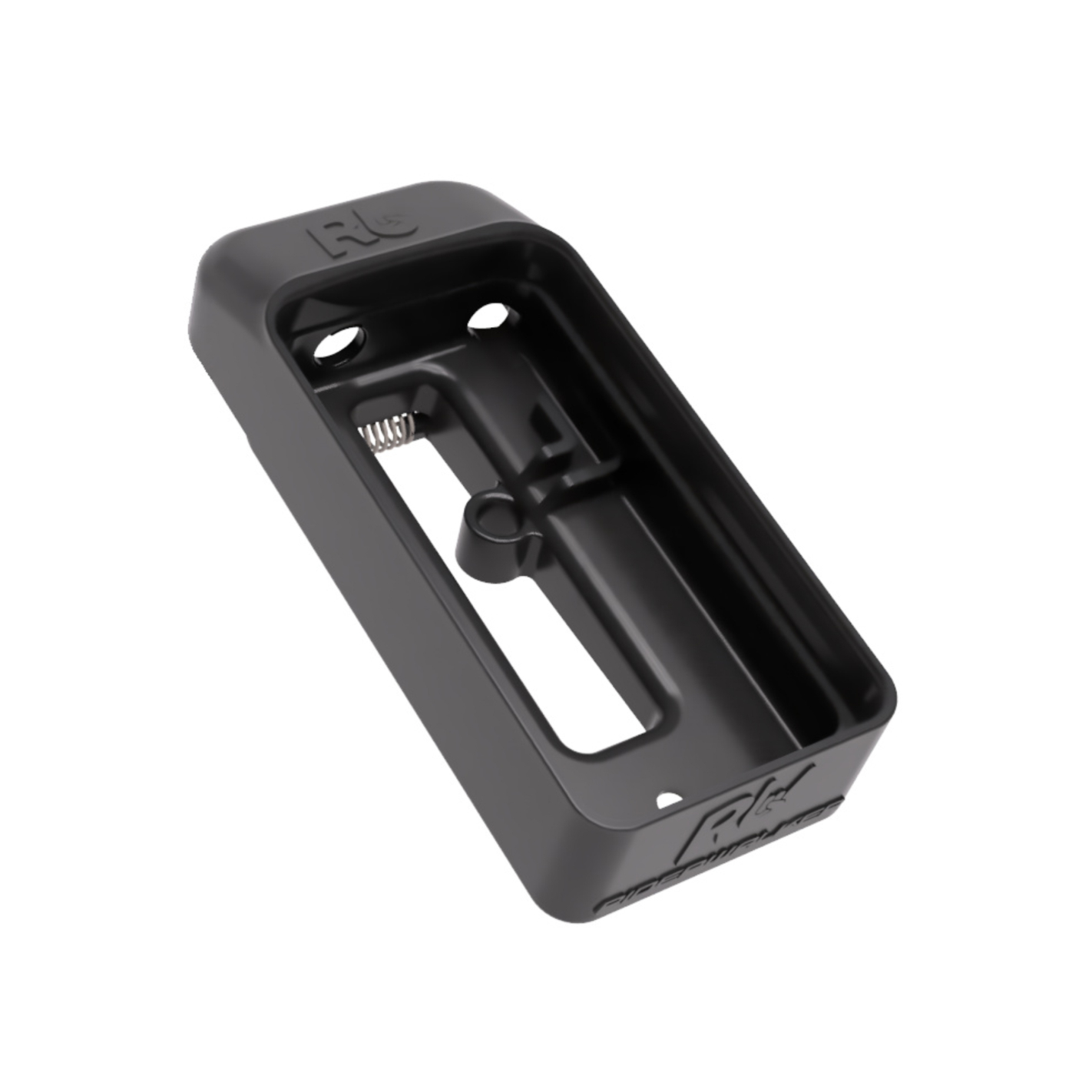

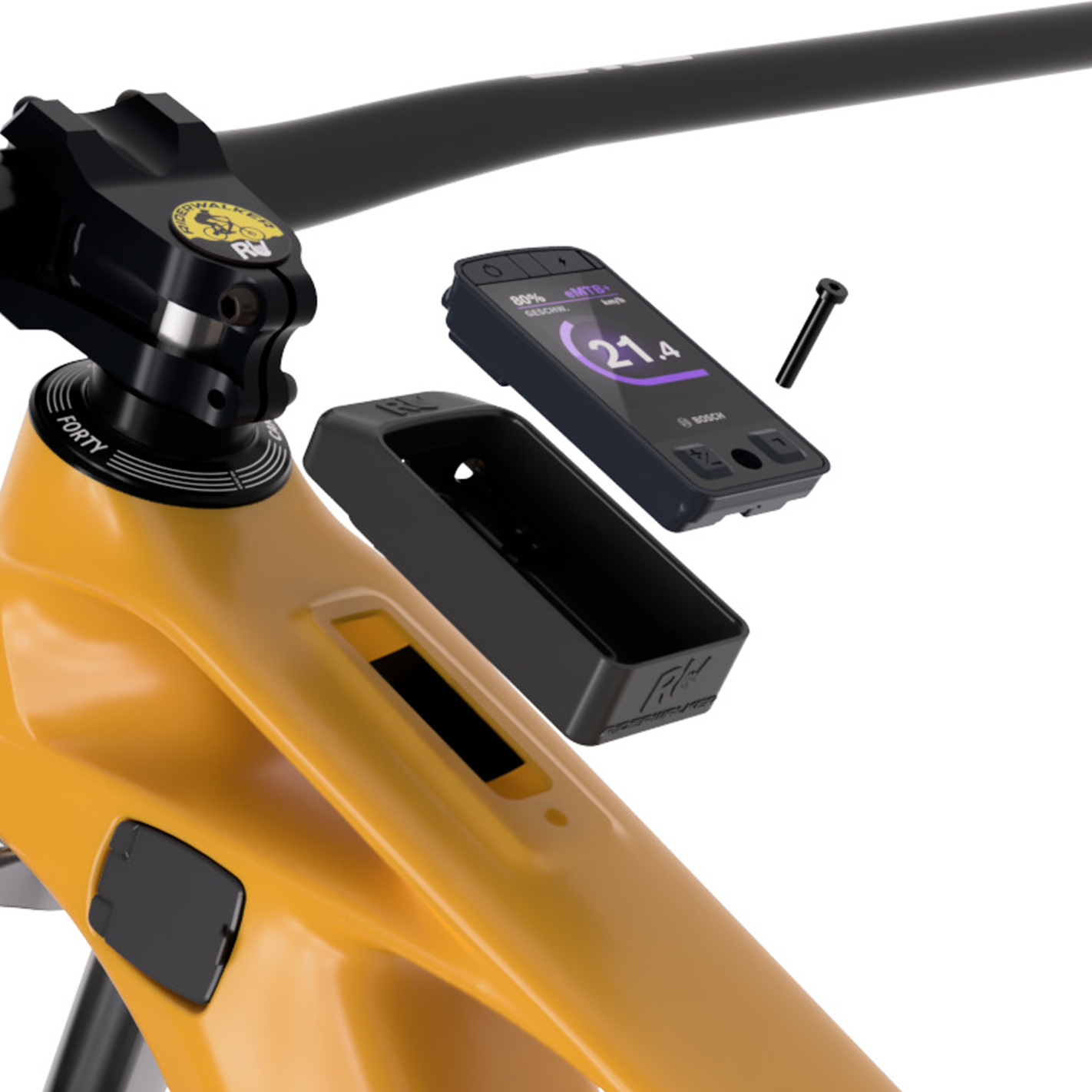

The pack includes everything you need to install the Bosch KIOX 400C display on the frame: the MASTERMOUNT400 mount, the lower fixing screw and the upper fixing spring.

FEATURES:

  • Dimensions: Length: 105 mm | Width: 46 mm | Height: 23 mm
  • Weight: 25 grams.

  • Secure and robust fastening: Replicates the original mounting.

  • No visible cables.
  • No additional cables required.
  • No need to modify or adapt the bike frame.
  • The bike’s warranty is preserved.
  • The display is NOT included, but you can also get it here.

INSTALLATION

DO IT YOURSELF

Watch installation video

HOW DO I INSTALL IT ON MY BIKE?

STEP 1: Remove the System Controller

Using a Torx T10 key, unscrew the bolt that holds the System Controller.

Once loosened, remove it carefully and disconnect the cable by gently pulling it out.

STEP 2: Position the cable

Insert the cable into the MASTERMOUNT400 through the central opening.

Then, pull it out through the front-right opening and insert it again through the front-left opening.

STEP 3: Prepare the Bosch Kiox 400C

Use a Torx T3 key and remove the front metal lever from the display.

Keep it, as it will not be needed for this installation.

STEP 4: Connect the display

Connect the cable to the display aligning the white line that indicates the correct position. Press until you hear a click.

Leave as little visible cable as possible, ideally less than 2 cm between the display and the mount.

STEP 5: Assemble everything

Insert the display into the mount while adjusting the excess cable. Before finishing, fit the cable into the guide on the mount.

When everything is assembled, place the unit on the frame and tighten it with a 3 mm Allen key, applying a maximum torque of 0.5 Nm (light tightening).

STEP 6: Pair with the Bosch Flow App

Press and hold the power button until the eBike enters Bluetooth pairing mode and in the Bosch Flow app, select “Add new bike” to pair it.

To pair the Mini Remote, remove the battery for 30 seconds. After reinserting it, hold the “–” button until the light turns blue.

In the Flow app: Gear icon (top right) → Components → Add device and select the Mini Remote.

Watch installation video

BOSCH KIOX 400C & MASTERMOUNT400
DESIGN, QUALITY & PRECISION

DO YOU ALSO NEED THE BOSCH KIOX 400C DISPLAY? YOU CAN GET IT HERE

As Bosch partners, we want to make things easy for you.

Now you can buy the MASTERMOUNT400 adapter and the Bosch Kiox 400C display in one place… convenient, fast, and hassle-free.

We keep permanent stock.

ADVANTAGES OF BOSCH KIOX 400C

GPS Navigation

Discover and explore amazing places directly from the 400C display.

USB-C Port

You can now charge phones, flashlights, GPS devices and more directly from the display.

Acoustic signals

Receive alerts and audio notifications from the display.

Customizable screens

Personalized information with over 30 data fields and metrics.

Battery percentage

Accurate display of the remaining battery level.

Automatic brightness

The brightness adjusts automatically thanks to its light sensor.

Better placement

A more discreet, protected and aesthetic location compared to KIOX 300 and KIOX 500 displays.

Error information

See the exact error code directly on the display to identify a problem immediately.

Pedaling efficiency

Kiox 400C analyzes your pedaling and shows whether you should shift up or down to optimize performance and efficiency.

Motivation

The Kiox 400C shows whether you are riding above or below your personal average power and speed.

MASTERMOUNT400 IS PROTECTED BY INDUSTRIAL AND INTELLECTUAL PROPERTY RIGHTS

We pour our character, enthusiasm, knowledge and identity into each of our components. To protect our customers from possible imitations and ensure they continue to enjoy our exclusive products, all RIDERWALKER® products and brands are patented and registered with the European Union Intellectual Property Office (EUIPO) and the Spanish Patent and Trademark Office (OEPM).
